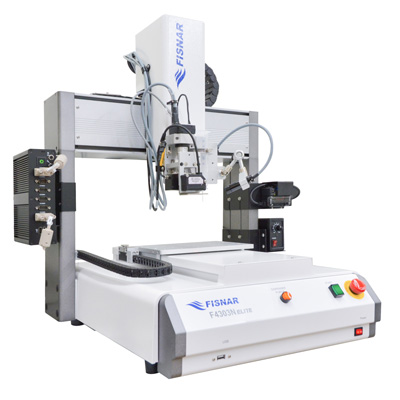

F4303N ELITE 3-Axis Robot
Fisnar F4000 ELITE 3-axis benchtop robots are designed to offer the highest level of precise automated fluid placement and positioning.
The CCD camera vision system and laser height sensor allow the system to automatically adjust for changes in part position/orientation and height*.
Specifically built for fluid dispensing processes, the F4000 ELITE proprietary robot vision software is user friendly and enables the set-up and running of complex dispensing routines to be created easily.
The additional auxiliary camera allows for realtime viewing, image capturing, and recording of the dispense path.
Additional functionality features CAD import and an offline measuring tool to further improve the user’s control of the dispensing process.
The F4000 ELITE can be supplied individually or as a complete stand-alone machine by integrating into a safety enclosure.
*Laser height sensor included with -IL and -LK models only.
Request a Quote
Request a Quote
| F4303N ELITE / F4303N-IL / F4303N-LK ELITE: 3-Axis Robot - 300 x 300 x 100 mm Work Area |
| F4403N ELITE / F4403N-IL / F4403N-LH ELITE: 3-Axis Robot - 400 x 400 x 100 mm Work Area |
| Dual linear guide and ball screw mechanism |
| Servomotor drive control with closed loop encoder feedback |
| CCD camera vision & PC kit with automated tip-alignment |
| Keyence Laser Height Detect Kit (-LK version for detection of transparent or highly reflective surfaces) |
| Fiducial Recognition System |
| Real-time preview & recording of dispense cycle path |
| Process functionality tools such as CAD import, measuring & image capture/recording |
| Working Area X/Y/Z | F4303N ELITE; F4303N-IL; F4303N-LK ELITE: 300 x 300 x 100 mm F4403N ELITE; F4403N-IL; F4403N-LK ELITE: 400 x 400 x 100 mm |
| Maximum Speed (X&Y/Z) | 800 / 250 mm / secs |
| Work Load | 25 kg (55 lb) |
| Tool Load | 6 kg (13 lb) |
| Repeatability | +/- 0.003 mm (will vary depending on measurement method) |
| Motion Control | PTP & CP |
| Drive Mechanism | Dual linear guide/ ball screw |
| Drive System | Servo Motor |
| Data Memory | PC Storage |
| I/O Signals | 8 inputs / 8 outputs |
| External Interface | USB / RS232 |
| Power Supply | Auto-switching AC 100 - 240 VAC, 320 watts |
| Dimensions (W/D/H) | F4303N ELITE; F4303N-IL; F4303N-LK ELITE: 681 x 575 x 687.5 mm F4403N ELITE; F4403N-IL; F4403N-LK ELITE: 781 x 675 x 687.5 mm |
| Weight | F4303N ELITE; F4303N-IL; F4303N-LK ELITE: 49 kg (108 lb) F4403N ELITE; F4403N-IL; F4403N-LK ELITE: 54 kg (119 lb) |
| Approvals | CE, RoHS, WEE |
