F4303N with Teach Pendant
The F4000 ADVANCE 3-axis benchtop robots are designed to ensure precise fluid placement and positioning. When configured with a syringe, cartridge, or valve system, a high level of accuracy and repeatability is achieved. Specifically built for fluid dispensing processes, the F4000 ADVANCE proprietary robot software is user friendly and enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes using the teach pendant (included).
The proprietary windows programming software allows for DXF files to be imported into the software and have dispense lines or dots quickly created from the imported CAD data. This feature dramatically reduces programming time for complex dispense patterns or when there is a high number of dispense positions.
The F4000 ADVANCE can be supplied individually or as a complete stand-alone machine system by integrating into a safety enclosure.
Request a QuoteRequest a Quote

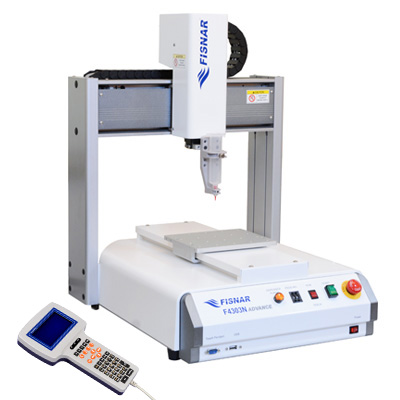

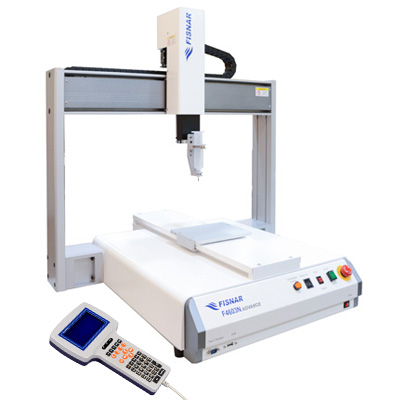

| F4303N: 3-axis Robot - 300 x 300 x 100 mm Work Area |
| F4403N: 3-axis Robot - 400 x 400 x 100 mm Work Area |
| F4503N: 3-axis Robot - 500 x 500 x 150 mm Work Area |
| F4603N: 3-axis Robot - 600 x 500 x 150 mm Work Area |
| Modular connectivity for easy installation of accessories at any time such as the CCD vision kit, tip-alignment, or height sensor |
| USB Port for data transfer and back-up |
| Program selector switch and fluid purge button |
| True 3D interpolation and simultaneous motion control |
| Teach pendant included for easy programming |
| High positional accuracy improves dispense results |
| Proprietary user-friendly software allows programs to be easily and quickly set up using the teach pendant or PC |
| Increased productivity due to faster cycle times and less rejects |
| Windows software provides greater control and visibility of complete dispense program |
| Maximum Working Area X/Y/Z | F4303N: 300 x 300 x 100 mm F4403N: 400 x 400 x 100 mm F4503N: 500 x 500 x 150 mm F4603N: 600 x 500 x 150 mm |
| Maximum Speed (X&Y/Z) | 800 / 320 mm / sec (31 / 13” / sec) |
| Work Load | 10 kg (22 lb) |
| Tool Load | 5 kg (11 lb) |
| Repeatability | +/- 0.008 mm |
| Motion Control | PTP & CP |
| Drive System | 3-phase micro stepping motors |
| Data Memory | 1-100 programs | 1-50,000 points / program |
| I/O Signals | 8 inputs / 8 outputs |
| External Interface | USB / RS232 |
| Power Supply | Auto-switching AC 100 - 240 VAC, 320 watts |
| Dimensions (W/D/H) | F4303N: 490 x 517 x 645 mm F4403N: 590 x 617 x 645 mm F4503N: 690 x 717 x 815 mm F4603N: 810 x 717 x 815 mm |
| Weight | F4303N: 34.5 kg (76 lb) F4403N: 42.5 kg (94 lb) F4503N: 47.5 kg (105 lb) F4603N: 49 kg (108 lb) |
| Approvals | CE, RoHS, WEE |
