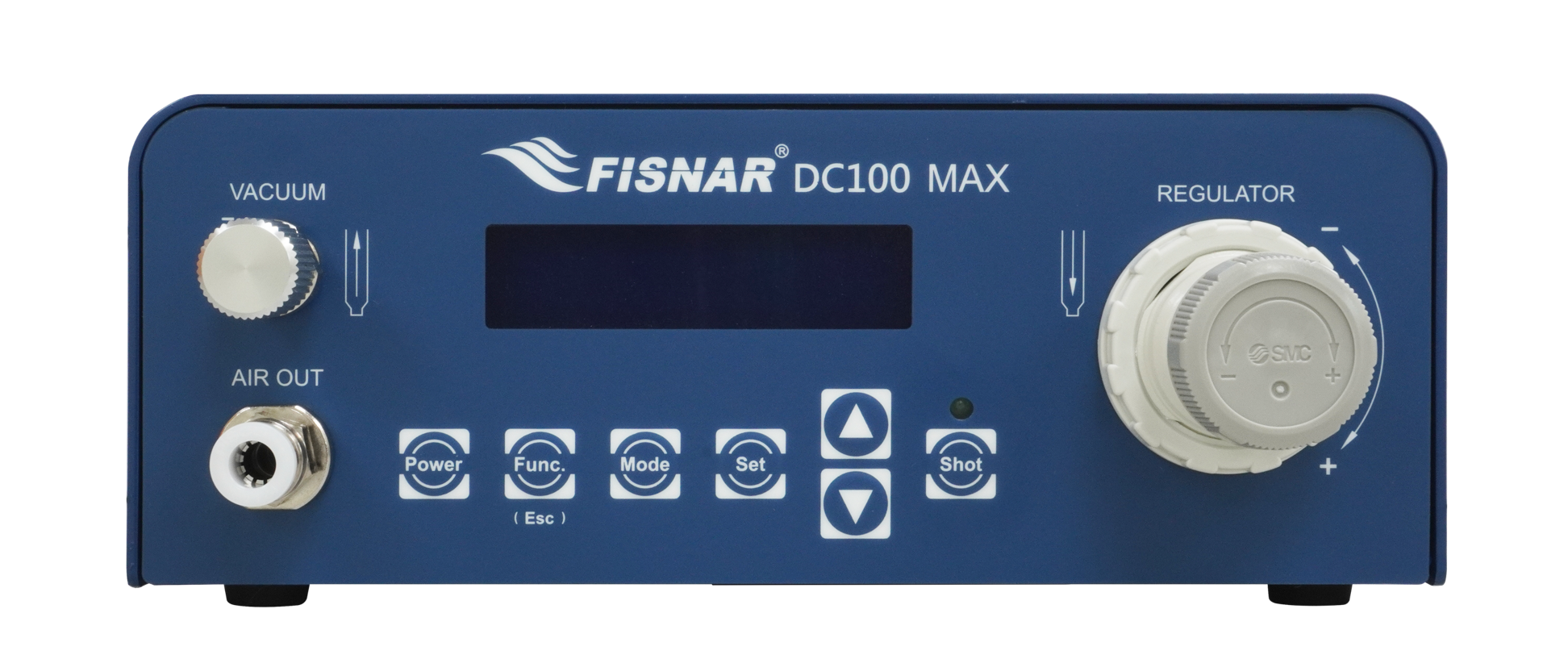

DC100 MAX High Precision Dispenser
A versatile, high precision dispenser designed to achieve exceptional levels of process stability on critical dispensing applications: from microdot deposits and precise beads, to potting and encapsulation. The advanced user-friendly dispense software features a wide range of intelligent functions, allowing the user to maximize the accuracy, control, and monitoring of their application.
Programmable alarms can be set to notify the user when fluid material life has ended, or when fluctuations in the dispensing pressure have occurred. The sequence function enables the dispense time to be changed at pre-set time intervals or shots throughout the process. This ensures consistent dispense results are maintained that may have been affected by a fluctuation in fluid viscosity or a reduction in the syringe fluid level.
Request a QuoteBuy at Ellsworth Adhesives
| DC100 MAX High Precision Dispenser |
| 16 programmable memory slots |
| 5 dispense operation modes (Purge, Teach, Timed, Time+, Cycle) and sequence function |
| Multilingual display (English, French, Spanish, German, and Chinese Mandarin) |
| Digital display (time, pressure, vacuum) |
| Dispense cycle and time counter, and limit alarm |
| Pressure and vacuum alarm |
| Total machine time usage and cycle monitor |
| Internal pressure and vacuum calibration function |
| Pressure (psi, bar, kPa) and vacuum (inHg, inH2o, kPa) measurement units |
| Momentary or latching shot actuation signal |
| Cycle Rate | Up to 600 cycles / min |
| Dispense Time | 0.008 - 999.9 secs |
| Programs | 16 Memory Slots |
| Input AC to Power Supply | 100 - 240 VAC, 50/60 Hz |
| Output DC from Power Supply | 24 VDC - 0.75 Amp |
| Air Input | 70 - 100 psi (7 bar) max |
| Air Output | 1 - 100 psi (0.07 - 7 bar) |
| Operating Temperature | 50 - 104 °F (10 - 40 °C) |
| Relative Humidity | 20 - 90% (No Condensation) |
| Dimensions (WxDxH) | 7.53” x 7.05” x 2.83” (191 x 179 x 72 mm) |
| Weight | 2.31 lbs (1.05 kg) |
| Standards | CE & UKCA Approved, RoHS & EMC Compliant |

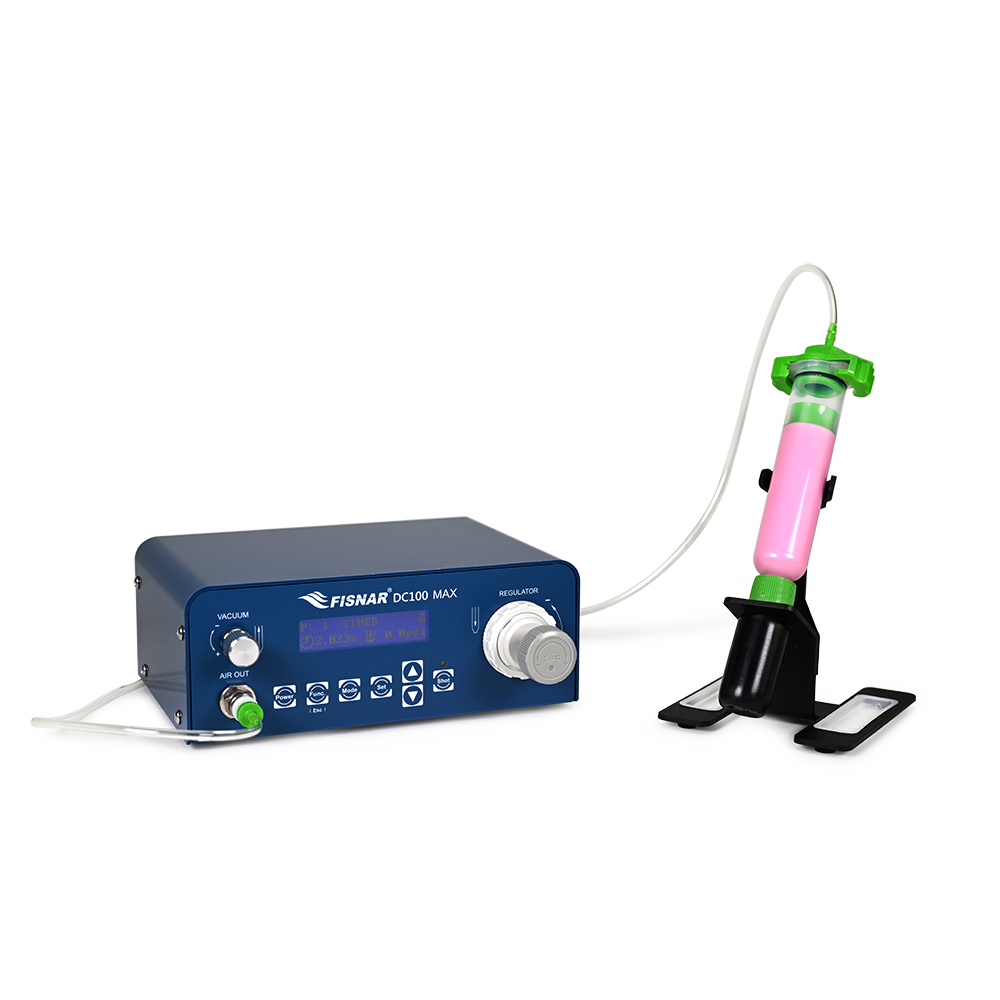

| 5601969 | Syringe Barrel Dispensing Stand |
