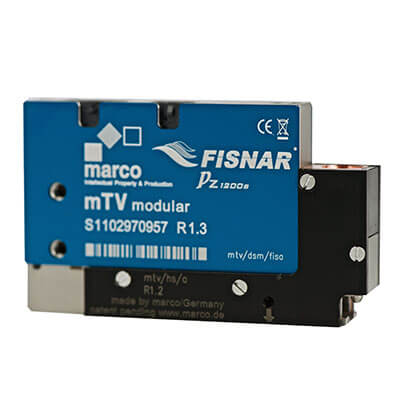

PZ1200S: Piezo Valve – Medium Viscosity
The Pz1200 Piezoelectric Valve can be configured as a non-contact jet or precise high-speed contact dispensing valve. The advanced piezoelectric ceramic actuation technology achieves exceptional levels of dispense accuracy and superior process control.
The inclusion of an integrated closed loop heater element inside the valve allows the fluid viscosity to be stabilized, to assist in optimizing jet ability and dispense process control.
The unique modular valve design gives complete versatility, in order for it to be correctly configured for both application process and dispense fluid requirements.
Request a QuoteRequest a Quote
| PZ1200S: Piezo Valve – Medium Viscosity |
| PZ1200D: Piezo Valve – High Viscosity |
| Dot size as small as 1 nl/0.2 mm |
| Exceptional dispense accuracy |
| Fixed valve stroke ensures superior process control |
| Continuous cycle rates up to 1,200 Hz |
| Fast cycle times and long service life |
| Durable ceramic cartridge ball and valve seat |
| Closed loop fluid heater for stabilizing fluid viscosity |
| Material Delivery Pressure | 1,000 psi max |
| Viscosity Range | Pz1200S: 1 to 100,000 cps; Pz1200D: 50,000 cps |
| Wetted Components | Stainless Steel 303, Ceramix FFKM, NBR, PEEK |
| Material Inlet | M8x1 |
| Min. Dispensing Time | Pz1200S: 0.20ms; Pz1200D: 0.18ms |
| Max Continuous Dispensing Frequency | Pz1200S: 1,200 Hz; Pz1200D: 500 Hz |
| Max Burst Dispensing Frequency | Pz1200S: 2,000 Hz; Pz1200D: 750 Hz |
| Maintenance/Inspection Interval | Approx. 10,000,000 cycles (fluid dependent) |
| Dispensing Accuracy | >99% (non-varying conditions) |
| Max Fluid Input Pressure | Up to 75 bar |
| Max Fluid Temperature | Up to 75 °C |
| Weight | 320 g (0.7 lb) |
| Dimensions | 86 x 17 x 52 mm (3.4 x 0.7 x 2”) |

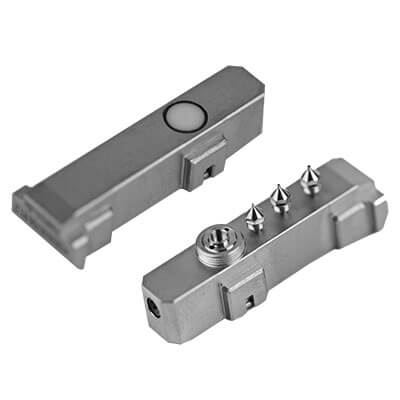

| PZ-VS-D100C | Non-Contact Needle Valve Seat |
| PZ-VS-D100T | Non-Contact Needle Valve Seat |
| PZ-VS-D150C | Non-Contact Needle Valve Seat |
| PZ-VS-D150T | Non-Contact Needle Valve Seat |
| PZ-VS-D300C | Non-Contact Needle Valve Seat |
| PZ-VS-D300T | Non-Contact Needle Valve Seat |
| PZ-VS-SN | Contact Needle Valve Seat |
| PZ-VS-LL | Contact Needle Valve Seat |

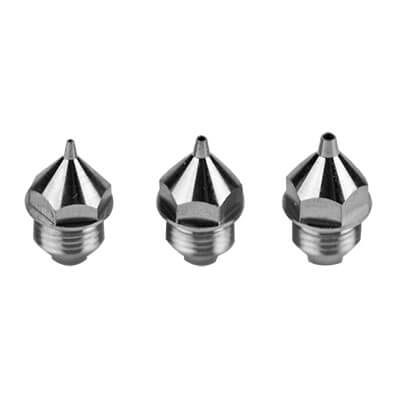

| PZ-TIP-SN100 | Screw Nozzle 100 µm |
| PZ-TIP-SN200 | Screw Nozzle 200 µm |
| PZ-TIP-SN300 | Screw Nozzle 300 µm |
| PZ-TIP-CAP | Screw Nozzle Protection Cap |
| PZ-INLET-LLH | Fluid Inlet Fitting – Luer Lock |
| PZ-INLET-HOSE4H | Fluid Inlet Fitting – 4 mm I.D. Tubing |
| PZ-INLET-SUPPORT | 30/55 cc Syringe Barrel Support Bracket |
Pz1200 Piezoelectric Jet Contact Dispense Valves
Watch a demonstration of Fisnar’s Pz1200 Piezoelectric Jet Contact Dispense Valve. Using its advanced piezoelectric ceramic actuation technology, the valve jets a 10mg deposit of 100cst silicone oil with exceptional process control and accuracy.
