PC-V16
The PosiPump™ V-Series Progressive Cavity Valve offers true volumetric meter mix dispensing of two component fluids.
Independent control of each fluid material allows the mixing ration to be finitely adjusted. The endless piston design and bi-rotational control ensure clean, consistent, and reliable dispense results.
A variety of fluid outlet blocks are available, designed for use with three different mixer types to meet all standard application demands.
Mixer manifold and connecting cable required for operation. See accessories.

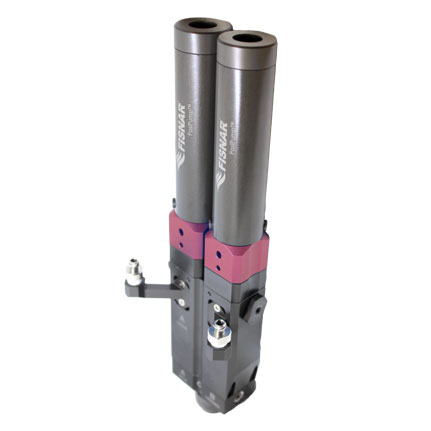

| PC-V16: Progressive Cavity Valve 0.016 cc |

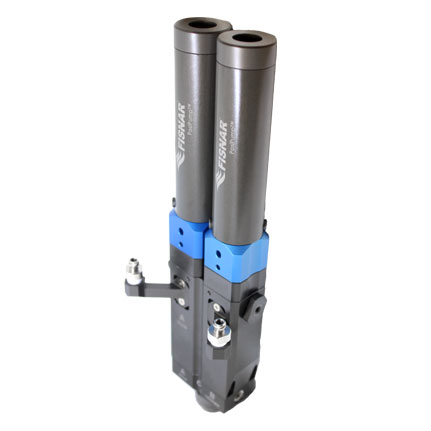

| PC-V100: Progressive Cavity Valve 0.1 cc |

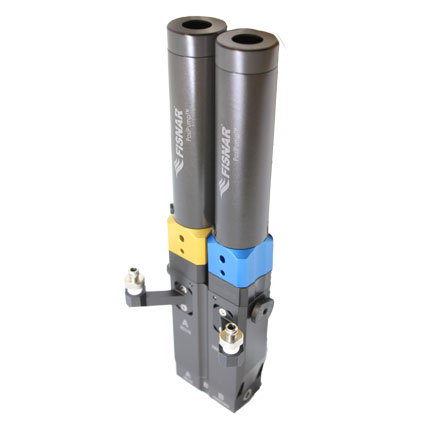

| PC-V550: Progressive Cavity Valve 0.55 cc |
| PC-V1000: Progressive Cavity Valve 1 cc |
| Dispense volume as small as 0.016 ml |
| Constant volumetric and pressure-stable dispense system |
| Dispense volume is not affected by changes in fluid viscosity or feed pressure |
| FKM or FFKM Stator Material |
| Long service life |
| Compatible with industry standard mixing nozzles |
| Dosing Volume/Rev | PC-V16: 0.016 ml PC-V100: 0.1 ml PC-V550: 0.55 ml PC-V1000: 1 ml |
| Motor Speed | 1 - 120rpm |
| Max Flow Rate | PC-V16: 0.96 ml/min PC-V100: 12 ml/min PC-V550: 66 ml/min PC-V1000: 120 ml/min |
| Material Input Pressure | 1 - 100 psi |
| Fluid Viscosity Range | 1 - 500,000 cps |
| Rotor Material | SUS316 |
| Stator Material Size | FKM (FFKM option) |
| Fluid Inlet & Outlet Material | AL6061 Hard Anodize |
| Seal Material | UHMW-PE |
| O-Ring Material | Viton® |
| Material Inlet | 1/8" BSP / Luer Lock |
| Material Outlet | Mixer B, C, or K Style |
| Weight | PC-V16: 1,100 g (2.4 lb) PC-V100: 1,600 g (3.5 lb) PC-V550: 1,400 G (3.1 lb) PC-V1000 1,600 g (3.5 lb) |
| 5601912 | Valve Connecting Cable 10 ft (3 m) |
| 5601913 | Valve Connecting Cable 30 ft (9.1 m) |
| 5601914 | Fluid Pressure Sensor Kit 10 ft (3 m) |
| 5601921 | Syringe Barrel Support 30/55 cc |
| 5601923 | Cartridge Support |
| 5601800U | Robot Mounting Bracket |
| 562318U | Valve Stand |
| 5601915 | Mixer Manifold B 1:1/2:1 for PC-V16 |
| 5601916 | Mixer Manifold B Wide Ratio for PC-V16 |
| 5601917 | Mixer Manifold B 1:1/2:1 for PC-V100 and PC-V1000 |
| 5601918 | Mixer Manifold B Wide Ratio for PC-V100, PC-V550, and PC-V1000 |
| 5601919 | Mixer Manifold C for PC-V100, PC-V550, and PC-V1000 |
| 5601924 | Cleaning Kit |
| 5601938 | Stainless Steel Fluid Fitting 1/8" PT x 1/4" O.D. Tube |
| 5601939 | Stainless Steel Fluid Fitting 1/8" PT x Female Luer Lock |
