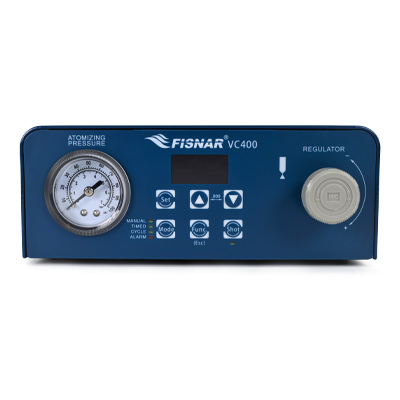

VC400 with Spray Valve
The VC400 is an intelligent and easy to use spray valve controller with a bright multi-line LED display for achieving clean and precise spray patterns when using pneumatically operated spray valves.
The simple, user-friendly programming allows both the fluid spray dispense air supply signal and atomizing air supply signal to be independently programmed, enabling a complete spray dispense cycle to be quickly created and displayed. Additionally, the integrated pressure regulator and gauge allow for precise control of the atomizing air pressure supply to the spray valve.
| 1 programmable memory slot |
| 0-100 psi atomizing air pressure regulator & gauge |
| 3 dispense modes (manual, timed & cycle) |
| 3 programmable spray time parameters (pre-spray, spray dispense & post-spray) |
| Bright multi-line LED display screen for easy visualization of all dispense parameters |
| Operator lockout function |
| Dispense cycle counter |

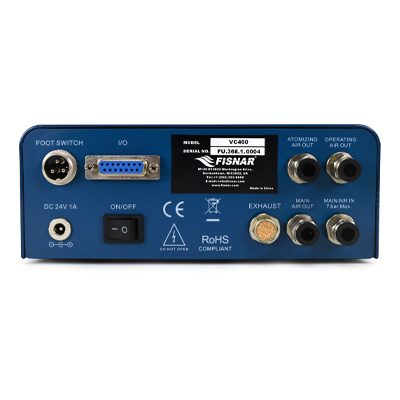

| 7 channel I/O circuit for external control and robot integration |
| Durable aluminum housing designed for industrial work environments |
| Worldwide compatible power supply |
| Dimensions | 7.56” x 5.04” x 3.00” (192 x 128 x 76 mm) |
| Weight | 2.71 lbs (1.23 kg) |
| Input AC to Power Supply | 100 - 240 VAC, 50/60 Hz |
| Cycle Rate | > 600 cycles / min |
| Relative Humidity | 20 - 90% (No condensation) |
| Operating Temperature | 50 - 104 °F (10 - 40 °C) |
| Timer | 0.008 - 999.9 secs |
| Air Input | 100 psi (7 bar) max |
| Air Output | 1 - 100 psi (0.07-7 bar) |
| Standards | CE Approved, UKCA Approved, RoHS Compliant, EMC Compliant |
