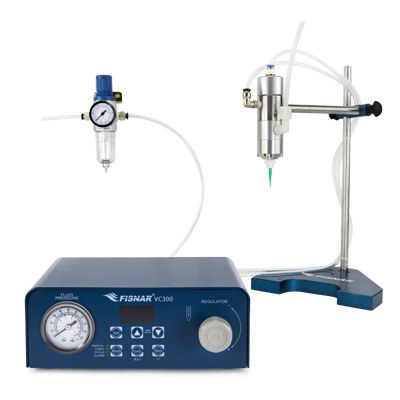

VC300 with High-Pressure Spool Valve and 5-Micron Air Filter
The VC300 is a sophisticated controller able to control the operation of pneumatic dispensing valves with a spring return closing action or air actuated closing action. The internal high speed 5/2 way pneumatic solenoid valve is able to rapidly actuate and shut off the dispense valve to prevent drooling, and achieve consistent and repeatable dispense results.
An integrated pressure regulator and gauge offer the added benefit in allowing the controller to control both dispense valve actuation and the fluid pressure of the fluid feed system being supplied to the dispense valve, resulting in a simple and compact valve system setup.
| 1 programmable memory slot |
| 0 - 100 psi fluid pressure regulator & gauge |
| 3 dispense modes (manual, timed & cycle) |
| Compatible for use with pneumatic dispense valves fitted with a spring return or air actuated closing action |

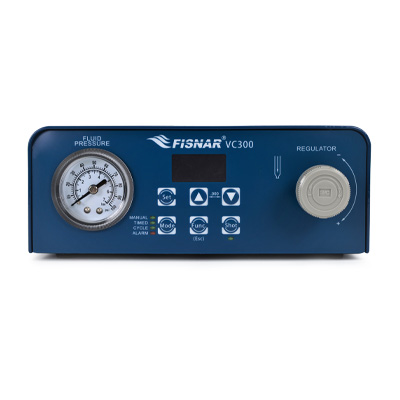

| Bright multi-line LED display screen for easy visualization of dispense parameters and conditions |

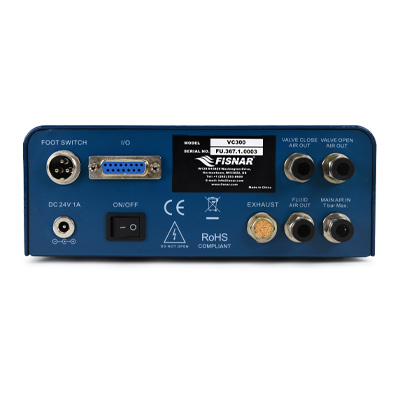

| 7 channel I/O circuit for external control and robot integration |
| Durable aluminum housing designed for industrial work environments |
| Worldwide compatible power supply |
| Dimensions | 7.56” x 5.04” x 3.00” (192 x 128 x 76 mm) |
| Weight | 2.36 lbs (1.07 kg) |
| Input AC to Power Supply | 100 - 240 VAC, 50/60 Hz |
| Cycle Rate | > 600 cycles / min |
| Relative Humidity | 20 - 90% (No condensation) |
| Operating Temperature | 50 - 104 °F (10 - 40 °C) |
| Timer | 0.008 - 99.99secs |
| Air Input | 100 psi (7 bar) max |
| Air Output | 1 - 100 psi (0.07 - 7 bar) |
| Standards | CE Approved, UKCA Approved, RoHS Compliant, EMC Compliant |
